Flat roofs have been a staple in modern architecture, admired for their clean lines and space efficiency. Popular in both residential and commercial construction, they offer numerous benefits, including:
- Cost-effectiveness
- Practicality
- Space-saving qualities
However, flat roof construction requires careful design and execution to ensure durability and functionality. This blog post dives deep into flat roof construction, covering its structure, materials, installation process, benefits, drawbacks, and maintenance needs.
What Is a Flat Roof?
A flat roof is a type of roofing system that, although appearing flat, has a slight pitch (typically between 1/4 to 1/2 inch per foot) for water drainage. Unlike pitched roofs, flat roofs maximize usable space on top of the building and are one of the most common types of roofing systems for commercial buildings. They’re also gaining traction in modern residential designs.
Whether you’re considering a flat roof for your next project or analyzing its pros and cons, understanding the basics is essential.
6 Components of a Flat Roof
Flat roofs, despite their simple appearance,consist of multiple layers that work together to provide durability and protection against the elements. Here are the key components:
1) Decking:
The base layer of a flat roof is the decking, typically made from plywood or oriented strand board (OSB). It serves as the structural surface to which all other roofing materials attach.
2) Insulation:
To maintain energy efficiency and prevent heat loss, insulation is installed above the decking. This layer can be made from materials such as foam board or rigid foam panels.
3) Vapor Barrier:
A vapor barrier is added to prevent moisture from seeping into the insulation, which could compromise the integrity of the roof structure.
4) Roof Membrane:
Acting as the primary waterproof layer, the roof membrane is crucial for protecting the building from water infiltration. Common materials include EPDM rubber, modified bitumen, or PVC.
5) Flashing:
Metal flashing is installed around edges and penetrations to provide additional waterproofing. It helps seal joints and transitions where the roof meets other structures, like chimneys and vents.
6) Surface Coating:

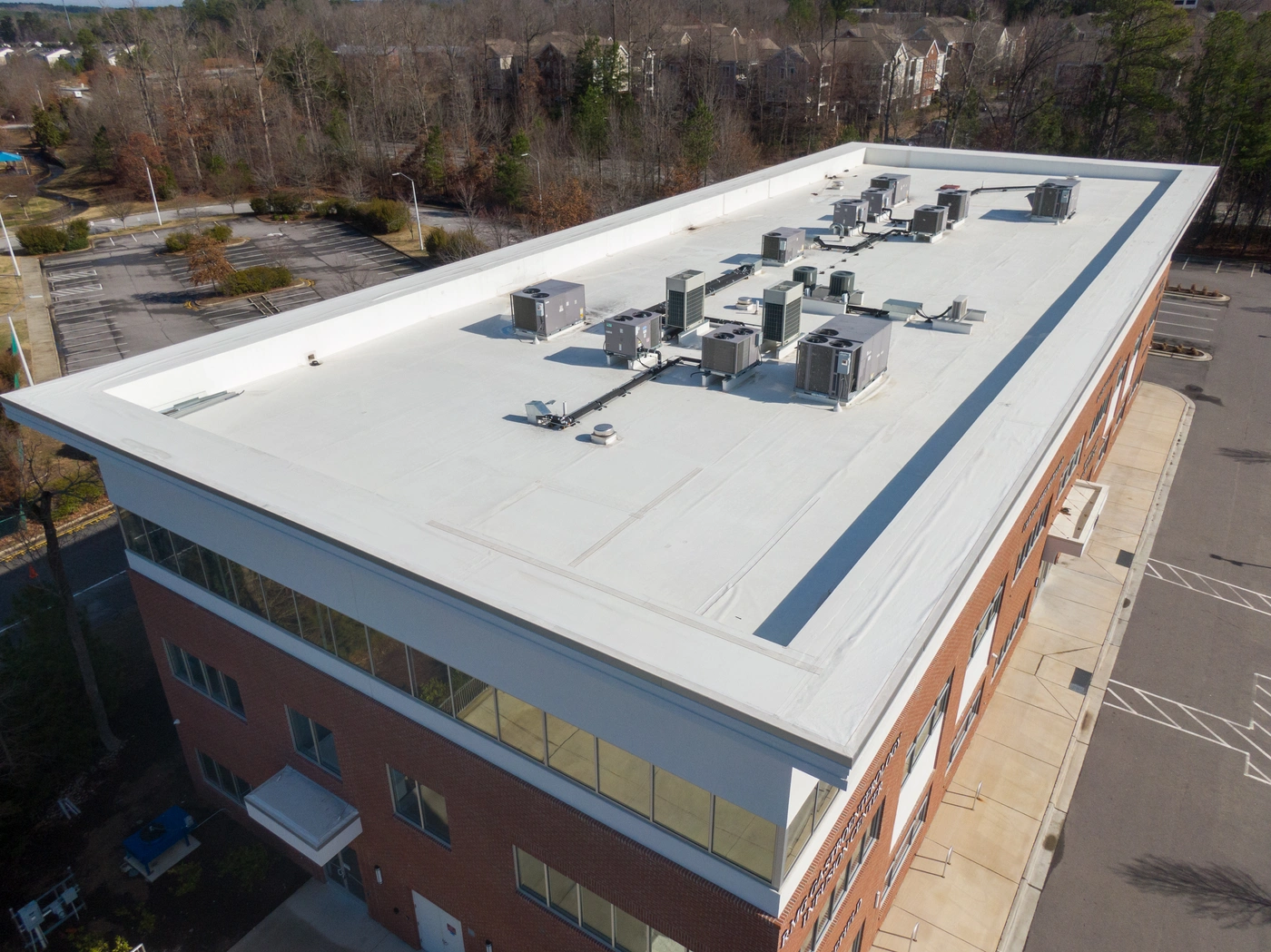

In some cases, a reflective or protective coating is applied on top of the membrane to reduce heat absorption and improve energy efficiency, while also extending the life of the roof.
Each component plays a vital role in ensuring the flat roof’s long-term performance, requiring careful selection and professional installation to meet specific building needs.
Benefits of Flat Roof Construction
Flat roofs come with several advantages that make them a preferred choice in certain applications. Here are the main benefits:
💵 Cost-Effectiveness
Flat roofs are generally less expensive to construct compared to pitched roofs because they require fewer materials and are quicker to install. This makes them an attractive option for homeowners and businesses on a budget.
👍 Efficiency in Space Utilization
A flat roof creates usable space that can be repurposed. Many modern designs incorporate rooftop gardens, terraces, solar panels, or even recreational areas into flat roof spaces.
🧰 Ease of Installation
Flat roof systems have a straightforward installation process when compared to pitched roofs. This simplicity reduces construction time and labor costs while still achieving a reliable structure.
👣 Accessibility
With a flat surface, inspections, maintenance, and repairs are far easier and safer compared to traditional sloped roofs.
🎨 Modern Design Aesthetic
Flat roofs are a signature of contemporary architecture, lending a sleek and minimalist aesthetic to buildings.
Challenges of Flat Roof Construction
While flat roofs offer many advantages, they also come with their share of challenges. It’s crucial to consider these aspects before deciding if a flat roof is right for your project:
- Drainage Issues: Despite their slight pitch, flat roofs are more prone to water pooling than sloped roofs. This can lead to long-term structural issues if not addressed.
- Shorter Lifespan: Flat roofs tend to have a shorter lifespan compared to pitched roofs due to increased exposure to environmental elements and standing water over time.
- Regular Maintenance: Flat roofs require consistent maintenance, including cleaning drains, checking for pooling water, and inspecting for damages like cracks or splits in the roofing material.
Materials Used in Flat Roof Construction
Several materials are available for flat roof construction, each with its own unique properties, advantages, and drawbacks. Selecting the right material will depend on your budget, durability requirements, and climate.
Built-Up Roof (BUR)
Built-Up Roof (BUR) systems consist of multiple layers of bitumen and reinforcing fabrics. Topped with gravel or a reflective coating, BUR is durable and known for its waterproofing capabilities.
- Pros: Great waterproof protection, long lifespan, resistant to UV rays.
- Cons: Time-consuming to install, heavy, and may require structural reinforcement.
Modified Bitumen (MBR)
Similar to BUR but with added flexibility, Modified Bitumen systems use asphalt-based sheets reinforced with polyester or fiberglass. These are typically torched down during installation.
- Pros: Easy to install, good weather resistance, cost-effective.
- Cons: Doesn’t last as long as other materials, prone to damage from high heat.
Ethylene Propylene Diene Monomer (EPDM)
EPDM rubber roofs are made from synthetic rubber and are a popular option for lasting performance.
- Pros: Lightweight, durable, low maintenance.
- Cons: Vulnerable to punctures, prone to shrinkage over time.
Thermoplastic Polyolefin (TPO)
TPO membranes consist of a single-ply synthetic material known for its flexibility and energy efficiency.
- Pros: Reflects heat, eco-friendly, affordable.
- Cons: Less durable than other materials, lower resistance to heavy foot traffic.
Polyvinyl Chloride (PVC)
PVC membranes are similar to TPO but with added chemical resistance. They are a more premium option for flat roofs, especially in commercial applications.
- Pros: Highly durable, thermal resistance, fire resistance.
- Cons: Higher cost, less environmentally friendly during manufacturing.
Spray Polyurethane Foam (SPF)
SPF roofing involves spraying a liquid polyurethane foam that hardens into a seamless layer, offering incredible insulation and waterproofing.
- Pros: Excellent for insulation, lightweight, reduces air leaks.
- Cons: Requires professionals for installation, prone to damage from frequent foot traffic.
Flat Roof Construction Process
Flat roof construction involves detailed planning and execution to ensure its structural integrity and usability. The process generally includes:
Planning and Design
Start by outlining your needs—whether it’s a green roof or one meant for solar panels. Consider the building’s load-bearing capacity and ensure the design includes proper drainage systems.
Preparing the Deck
The roof deck serves as the foundation for your flat roof and must be clean, level, and sturdy. Materials like plywood, concrete, or steel are commonly used for flat roof decks.
Installing the Insulation
Proper insulation is necessary to provide thermal resistance and energy efficiency. Popular insulation materials for flat roofs include rigid boards (e.g., polyisocyanurate or EPS foam) and spray foam.
Laying the Waterproof Membrane
Apply the chosen waterproofing material (BUR, EPDM, TPO, etc.) carefully to prevent leaks. This is a critical step, as any gaps or cracks can result in water penetration.
Installing Drains and Flashing
Flat roofs rely on drains, gutters, and flashing systems for water management. Ensuring these systems are correctly installed is vital for preventing water damage.
Adding the Final Layer
Depending on your purpose, the roof may require a reflective coating, gravel for ballast, or a finished surface for foot traffic.
Final Inspection
Once construction is complete, a thorough inspection should be performed to ensure the roof is watertight and aligned with building codes.
Maintenance Tips for a Flat Roof
Regular maintenance is essential to prevent damage and extend the lifespan of a flat roof. Here are some tips to help you keep your flat roof in prime condition:
- Clear Debris Regularly: Remove leaves, dirt, and other debris that can block drains or create water pooling.
- Inspect After Heavy Weather: Look for signs of damage, such as cracks, splits, or punctures, after storms or heavy rainfall.
- Clean the Drainage System: Regularly clean gutters, downspouts, and drains to prevent water buildup.
- Schedule Professional Roof Inspections: Engage a roofing professional for periodic inspections to catch small issues before they become expensive repairs.
- Avoid Standing Water: Ensure water flows smoothly off the roof, as pooling water can lead to structural damage.
Is a Flat Roof Right for You?
Flat roof construction is an excellent choice for those who value modern aesthetics, additional usable space, and cost-effective solutions, but they do come with a need for regular maintenance and proper drainage systems. Whether you’re planning to build for residential or commercial purposes, understanding the benefits, challenges, and construction process of this roofing system ensures you make the most informed decision.
Take Care of Your Flat Roof System With G. Cannon
Flat roof construction is more than just a roofing option—it’s an architectural choice that reflects modern sensibilities and efficiency. With the right design, materials, and maintenance strategy, flat roofs can offer years of durability and functionality.
If you’re considering flat roof construction for your next project, consult with the experts at G. Cannon to ensure your design meets your specific needs. Want more insights? Browse our resources or reach out to us today!
